Product Overview

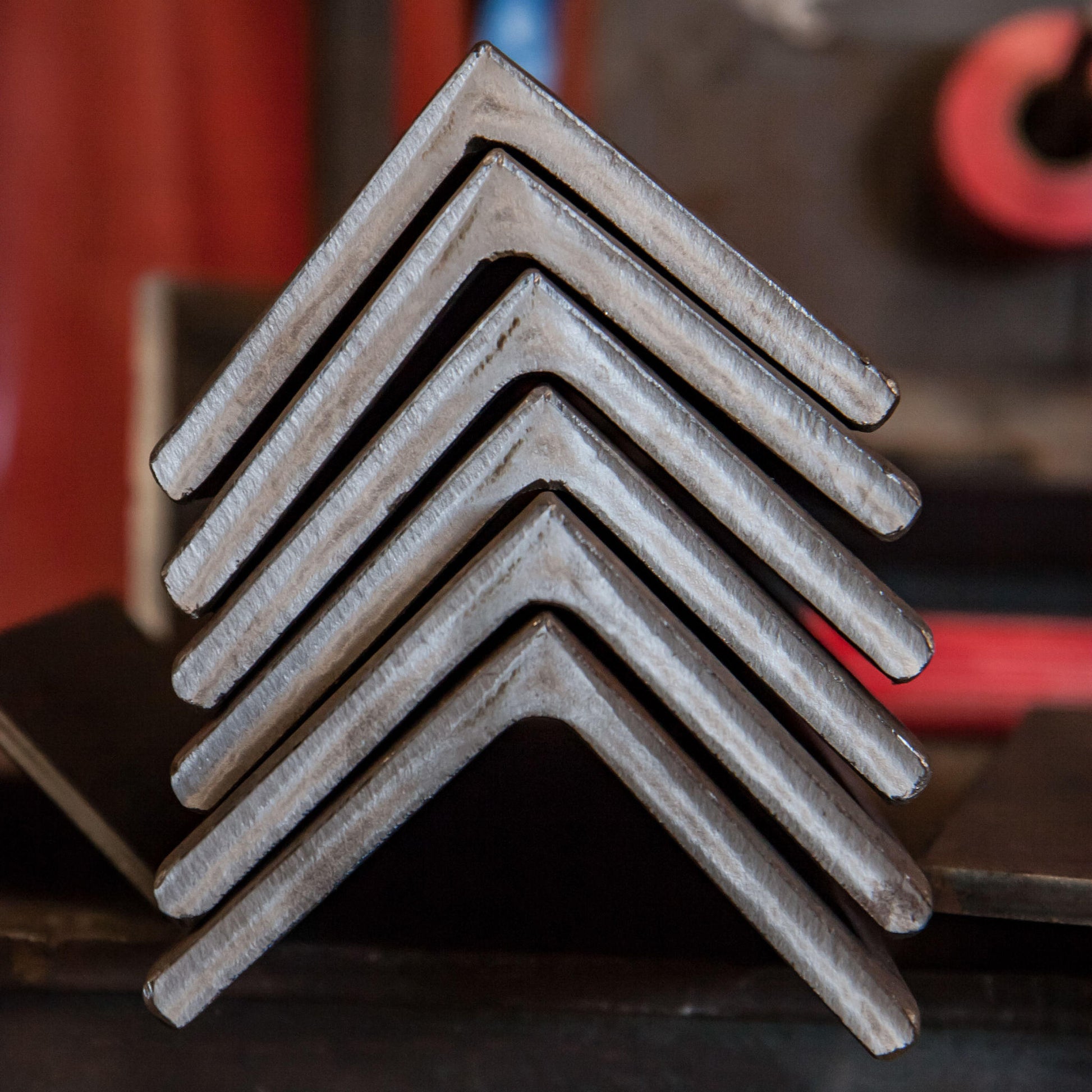

- Classification as per the standard : Mild Steel Angulars
- Rolled from Fully killed steel/ Semi killed Steel.
- Lenghts may vary and full length Channel range between 11mts -13.5 mts based on the production facility of the manufacturer.
- Invoicing as per actual weight
- Test Certificate can be provided on request at the time of placing the order.
- For special requirements with Grades specifications like E350BR,E410A,E410BR,E300A,E350A please use the enquiry form to place the order.
- For Rolling make products : ISI CERTIFICATION is available
- Tolerance standard For Channels :: IS :1852-1985/IS :3954 -1991
Tolerance Properties
Web depth tolerance (mm)|upto 200m :(+/- 2.5mm)|>200mm to 400mm :(+/-3mm)|Width of Flange tolerance |upto 100m :(+/- 2mm)Sectional Properties
- For Angles : IS :808 -1989
- For Channels :IS :808 -1989/IS :3954 -1991
- For Beams : DIN :1025-1994/IS :12778-1989/IS:808-1989
Formula And Calculation For ISMC Channels
- Weight of ISMC channel can be calculated using below formula: Weight (kg/m) = (A - B) * C * D
- Where:
- A = Flange Width (mm)
- B = Flange Thickness (mm)
- C = Width of the web (mm)
- D = Thickness of the web (mm)
Application
- Material Handling Equipment: Used in the building of conveyors and conveyor supports, among other material handling equipment.
- Automotive Industry :Used in the production of car frames, support structures, and other parts in the automotive industry.
- Shelving and Storage Racks: MS channels are utilised in the building of shelving and storage rack systems in retail establishments and warehouses.
- Shipbuilding: MS channels are used to apply structural components in shipbuilding
- Petroleum & Gas Industry: Employed in the building of equipment support structures and pipelines.
- Telecommunication Towers: Used in the building of antenna support structures and telecom towers.
- Railroads: Used on railway rails to support electrical wire, signals and other parts.
| Brand | Mechanical Properties | Chemical Properties | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield Strength | Internal Bend Diameter |
% Elongation | % Carbon | % Sulphur | % Phosphorus | % Mn | Carbon equivalent max |
Mode of Dexoidation |
|
| ROLLING | 327 | 31.3 | 0.15 | 0.029 | 0.057 | 0.57 | |||
| VIZAGSTEEL | 250 | <25 2t, >25 3t | 23 | 0.23 | 0.045 | 0.045 | 1.5 | 0.42 | Semi Killed/Killed |
| SAIL | 250 | <25 2t, >25 3t | 23 | 0.23 | 0.045 | 0.045 | 1.5 | 0.42 | Semi Killed/Killed |
