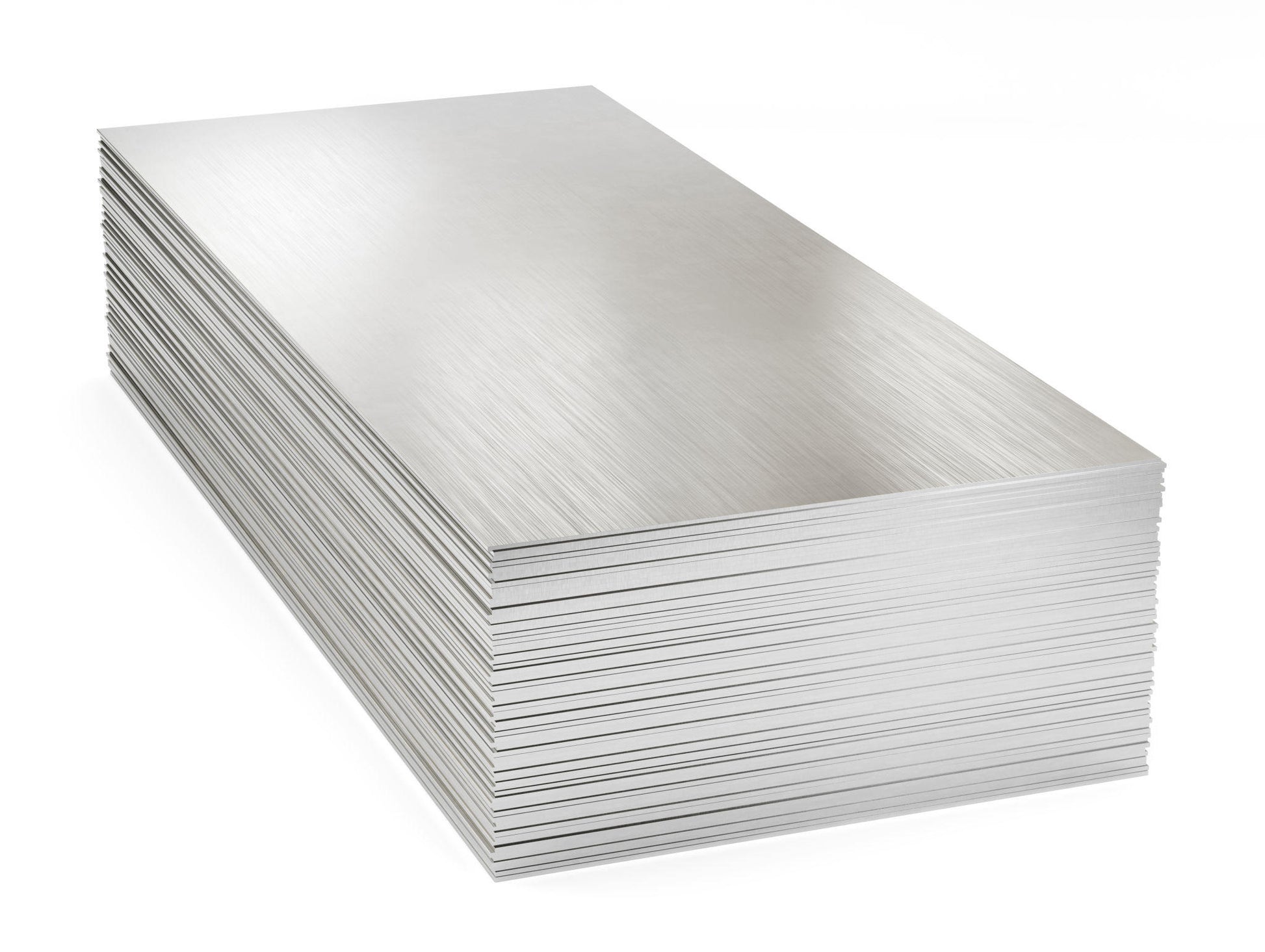

CR Sheets CR SHEETS 1mm - 3mm
1 1

CR SHEETS 1mm - 3mm

CR SHEETS 1mm - 3mm

BRANDS:

Select attributes

THICKNESS WIDTH LENGTH PRICE QUANTITY
(metrictonnes)
1mm 1220mm 2440mm Rs. 64,500.00
1.2mm 1220mm 2440mm Rs. 64,500.00
1.5mm 1220mm 2440mm Rs. 64,500.00
2mm 1220mm 2440mm Rs. 64,500.00
3mm 1220mm 2440mm Rs. 64,500.00
View full details
Document

Product Overview

  • CLASSIFICATION AS PER THE STANDARD : GP SHEETS = GALVANISED SHEETS : C R SHEETS = COLD ROLLED SHEETS : HR SHEETS=HOT ROLLED SHEETS.
  • Available in standard length and width , coils also available to suit your customised requirements .
  • Invoicing as per actual weight
  • Test Certificate can be provided on request at the time of placing the order.
  • For special requirements and custom lengths, please use the enquiry form to place the order.
  • For Rolling make products : ISI CERTIFICATION is available

Application

  • HOT ROLLLED SHEETS
  • STEEL SHED FABRICATIONS
  • APPLIANCE MANUFACTURING
  • IN PACKING MATERIALS CONSUMPTION
  • MACHINERY PRODUCTION

Cold Rolled sheets

  • Construction: Used for I-beams, bridges, and other infrastructure builds
  • Automotive: Used for truck and car frames, wheel rims, and seat frames
  • Railroad: Used for tracks and railcar components
  • Agricultural: Used for agricultural machinery
  • Art: Used for art sculptures because of their distinctive finish
  • Mining: Used for support beams, ladders, grinding balls, and light rails
  • Energy: Used for energy projects
  • LPG cylinders: Used for domestic or auto LPG cylinders
  • Welding purposes

Galvanised Steel sheets

  • AgricultureGrain Silos, Sprayers, Ghamellas, Pans, Feeding Troughs, Etc.
  • AutomobileCars, Busses. Truck Bodies, Undercarriage Work, Air & Oil filters, Fuel & Oil Tanks, Exhaust Pipes.
  • ConstructionRoofing, Side Walls, Partitions, Panels, Valley Gutters, Louvers, False Ceilings, Partition Walls & Ducks, Rolling Shutters, Higheay Bumpers, Slotted Angles, Paint-Coated Products.
  • DomesticTrunks, Ice Boxes, Household Machines, Tubs, Pails, Buckets, Storage Bins, Water Tanks, Washing machines, Bathroom Doors, Etc.
  • Electrical AppliancesAir Conditioners, Coolers, Refrigerators, Freezers, Electrical Panels, Decorative Lamps.
  • Furniture & FixturesDesks, Lockers, Racks, Lightweight Chairs.
  • IndustryDucting, Drums & Barrels, Thermal Cladding, Air Condotioning Ducts, Railway Coaches and Other Applications.
  • OutdoorsSigh- Boards, Hoardings, Road Signs.
Brand Mechanical Properties Chemical Properties
Yield to Strength
(N/mm)		 UTS % Elongation % Carbon max % Manganeese % Phosphorus S & P % Sulphur % Silicon
JSW 321 440 28 0.18 0.63 0.036 0.026 0.17
TATA 288 440 34 0.21 0.58 0.016 3mm 0.015 0.21
